Waste Refrigerators — An Overlooked Environmental Crisis and Urban Mine
With the development of the economy, regions such as China, the United States, and Europe have reached or exceeded a refrigerator ownership rate of 90 units per 100 households. Among these, the refrigerator ownership in China is nearly 500 million units. Based on a service life of 10 to 15 years, the annual discard volume of refrigerators is as high as over 4 million units. If these waste refrigerators are not properly handled, they will not only become a huge environmental burden — their refrigerants can damage the ozone layer, and the heavy metals and flame retardants in their circuit boards can pollute soil and water sources — but also mean a huge waste of resources such as iron, copper, aluminum, and plastics.
In the face of this challenge, harmless and resource-based treatment has become the inevitable path. This article focuses on the practices of leading companies such as Vary Tech — China's first service provider of waste household appliance recycling and disassembling systems — to reveal the core technologies that transform e-waste into an "urban mine."
Complex Structure and Material Value of Waste Refrigerators
To truly achieve harmless treatment of waste refrigerators and high-value resource recovery, it is essential to understand their complex internal structure and diverse material composition.
A typical waste refrigerator is far more than a simple iron shell; it is a sophisticated assembly of multiple materials. Its main components include the outer shell, insulation layer, door body, internal cavity, refrigeration system, and electrical control system.
These parts are made from various materials: the outer shell and main frame are primarily steel, providing structural support; the refrigeration system's pipelines and compressor coils contain high-value copper; condenser fins are often made of aluminum; internal drawers and shelves are commonly made of engineering plastics such as PP, PS, and ABS; and the polyurethane foam insulation material filling the cabinet walls is one of the key challenges in treatment.
More specifically, the compressor — the "heart" of the refrigerator — contains copper wire windings and a cast iron housing, concentrating value but requiring proper handling of its sealed refrigerant and lubricating oil. Printed circuit boards (PCBs), though small, are rich in valuable metals such as copper, gold, silver, and palladium, as well as hazardous substances like lead, mercury, and brominated flame retardants, making them both environmental risks and high-recovery-value components.
Material analysis shows that metals account for more than half of a refrigerator's composition, including large amounts of iron, copper, aluminum, and their alloys, along with various thermoplastic plastics. This highly mixed state of materials determines its great resource value — if effectively separated, these metals and plastics can become high-quality recycled raw materials; however, if mishandled, harmful components such as Freon, blowing agents, and heavy metals will cause severe environmental damage.
Therefore, identifying material value is the foundation, while designing efficient and precise separation processes for this complexity is the core of turning waste into treasure. Only through advanced combinations of crushing and sorting technologies can mixed materials in waste refrigerators be thoroughly separated, laying the groundwork for resource utilization.
Core Technologies: Achieving Efficient Harmless Treatment and Resource Recovery
Traditional manual disassembling is inefficient and risky. Modern treatment processes rely on automated, intelligent crushing and sorting production lines. Taking Vary Tech's leading technology — which has undergone seven generations of upgrades — as an example, the core process mainly includes pre-dismantling, crushing, and sorting.
Pre-treatment Stage：
Professional equipment safely extracts refrigerants and lubricating oil, eliminating pollution at the source. At the same time, high-value plastic parts, electrical boxes, wires, glass, drawers, partitions, circuit boards, and fiberglass are separated.
After pre-treatment, high-value components of waste refrigerators are sorted and recovered, while the cabinet enters the fine dismantling stage, which mainly includes crushing and sorting.
Crushing Stage：

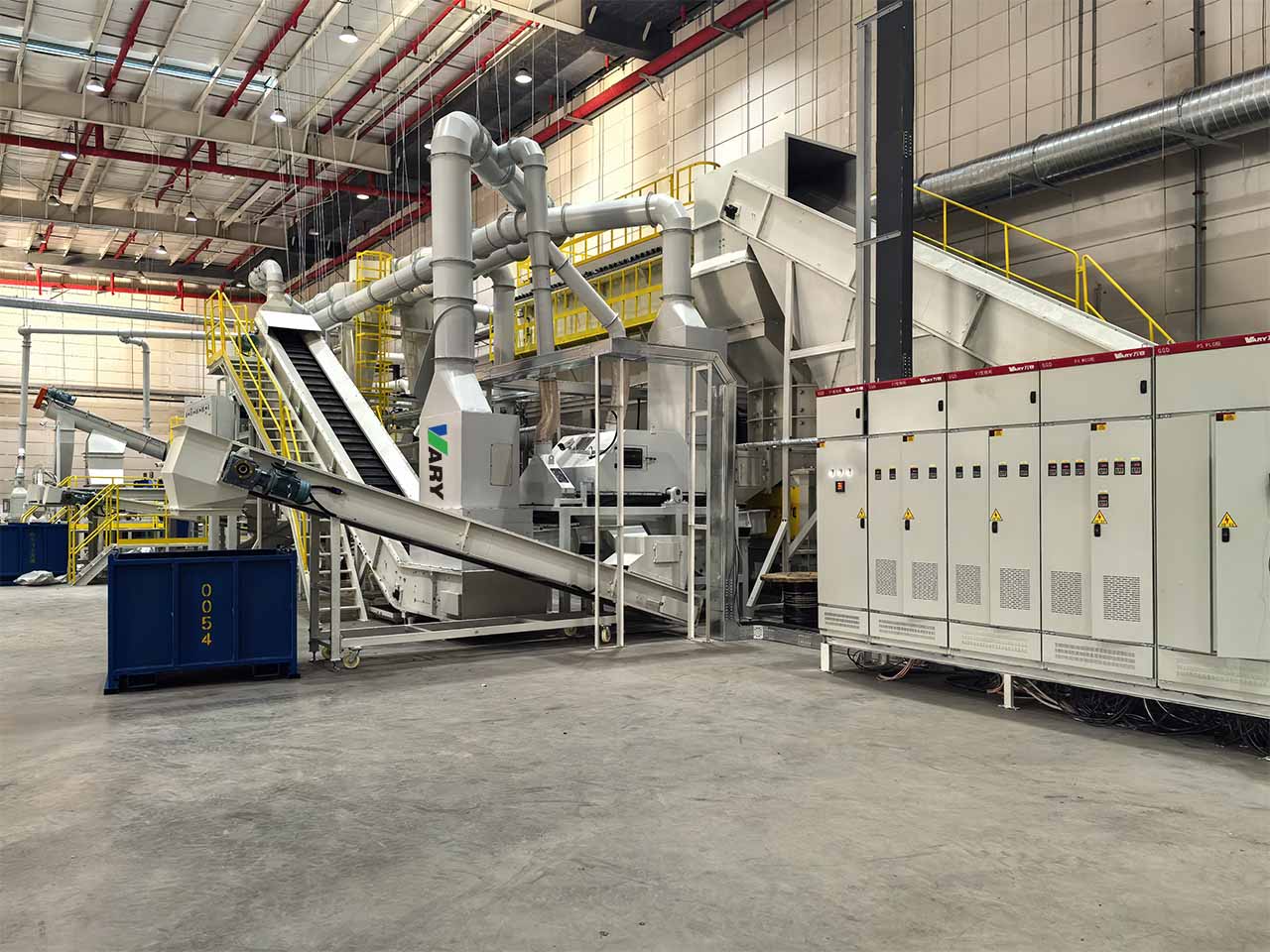

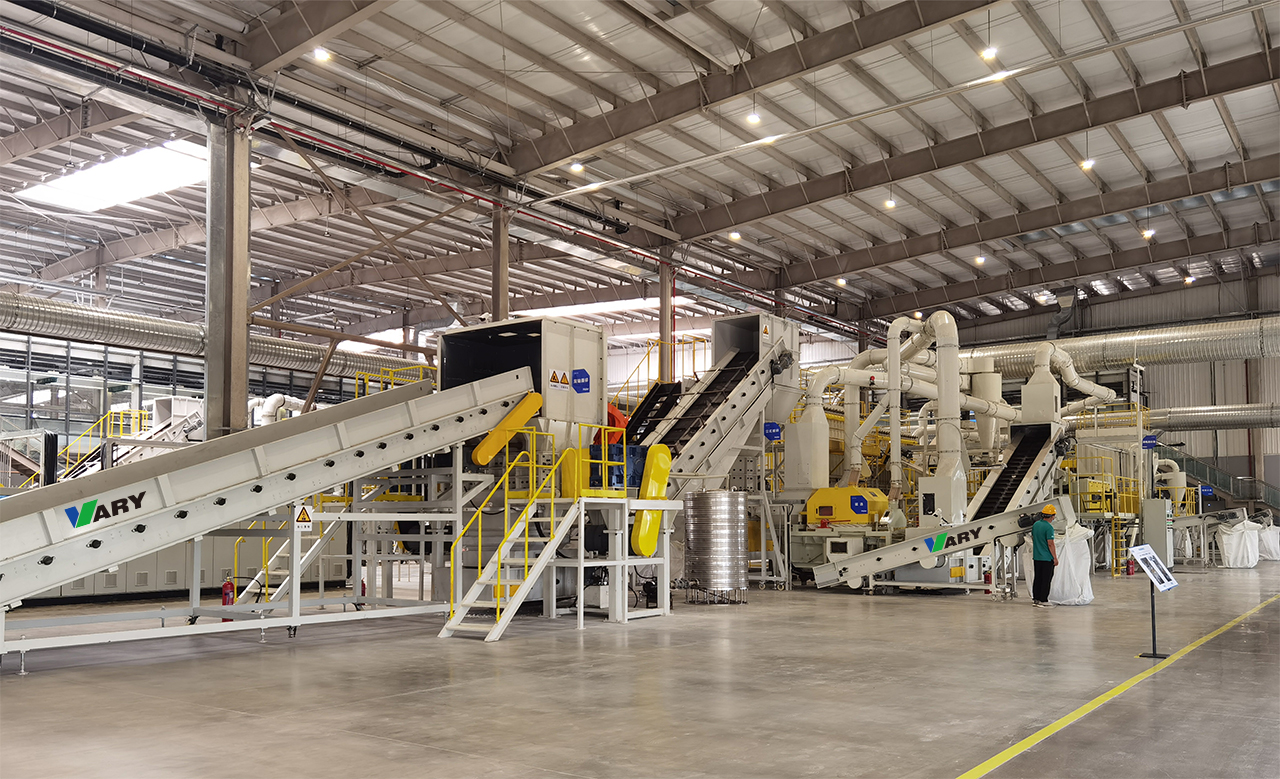

Vary Tech, as China's first enterprise specializing in harmless treatment of waste refrigerators and resource recovery, pioneered the "dual-shaft shredding + vertical crushing" combined process. The refrigerator cabinet first enters dual-shaft shredders, which quickly break it into uniform pieces. The material then passes through vertical crushers — high-speed rotating composite crushers — where it undergoes repeated hammering, rolling, and friction, eventually becoming high-density, uniform particles. This combined process perfectly separates metal and non-metal materials and shapes metals into uniform spheres, greatly facilitating subsequent sorting.
Sorting Stage：
The sorting stage mainly achieves separation of ferrous metals, non-ferrous metals, and non-metals, including efficient separation and classified recovery of five main materials: copper, iron, aluminum, foam, and plastic. The equipment processes mainly include magnetic separation, eddy current separation, air separation, color sorting, and gravity separation. Among these, magnetic separation and eddy current separation are essential equipment. Air separation is specifically designed for lightweight materials, separating plastics from polyurethane foam.
In addition, the entire production line is equipped with comprehensive environmental protection and safety control systems. A pulse bag filter dust collection system provides efficient dust collection to ensure emission standards are met. Core equipment adopts unique air volume design and is equipped with a water spray and nitrogen inerting fire protection system to ensure safe production. An automated control system precisely coordinates the linkage of various systems to maximize capacity (the refrigerator dismantling line can reach up to 200 units per hour) and features anomaly prediction functions to improve production line reliability and safety.
This system, independently developed by Vary Tech and certified through scientific and technological achievement appraisal organized by the Ministry of Industry and Information Technology, has been concluded to "fill a domestic gap and reach the international advanced level." It truly achieves efficient, clean, and safe treatment of waste refrigerators.
Practitioner of the Green Industrial Chain
As a leading enterprise in the field of waste electrical and electronic product disassembling, Vary Tech has been deeply engaged in the industry for nearly 20 years. Its services cover the All-China Federation of Supply and Marketing Cooperatives system (including its core enterprise China National Resources Recycling), central enterprises such as China National Resources Recycling Group, and many local leading enterprises and well-known home appliance manufacturers (Haier, TCL, etc.). Its technologies and equipment are exported to multiple countries and regions including India, Brazil, Spain, Turkey, and Malaysia.
After seven generations of technological upgrades, Vary Tech has provided over 100 sets of waste household appliance recycling and disassembling production lines to global customers, with a cumulative dismantling volume of 130 million units. Meanwhile, Vary Tech's subsidiaries have dismantled tens of millions of waste household appliances.
Conclusion and Outlook
Waste refrigerators are no longer troublesome "e-waste" but "urban mines" that are urgently to be developed. Through the technological innovation and practice of leading enterprises such as Vary Tech, we have already had mature solutions for realizing the harmless and resource-based treatment of waste refrigerators.
With the continuous tightening of environmental protection policies and the rise in resource prices, investing in and promoting such advanced technologies and equipment is not only the social responsibility of enterprises, but also a vast blue ocean market.
If you are a waste household appliance treatment enterprise, investor, or related institution hoping to learn more about the harmless treatment of waste refrigerators and resource recovery technologies and equipment solutions, please contact us for more detailed information and customized solutions.
