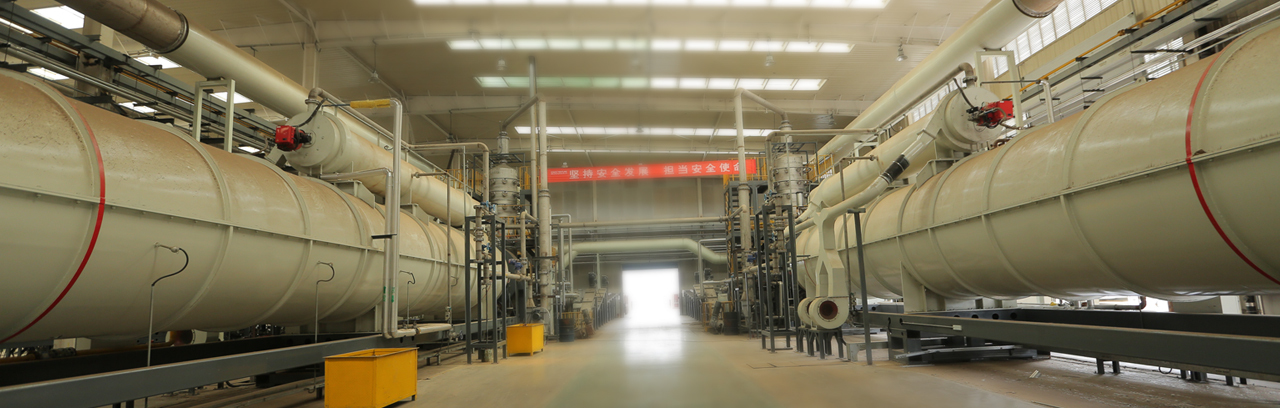

Pyrolysis Equipment for RDF

Complete equipment for RDF pyrolysis is mainly comprised of:
Pretreatment system, pyrolysis module, oil receiving module, non-condensable gas purification heat utilization module, flue gas treatment module and electrical control module.

Pretreatment system
After the solid waste is crushed, separated, dried and combined, the qualified raw materials can be obtained.

Pyrolysis module
It is comprised of feeding system, main pyrolysis furnace, combustion system and discharge system. It is used to send materials into the main pyrolysis furnace, decompose the materials and then transport them to the next end. It is the main part of material pyrolysis.

Oil receiving module
It is comprised of spray tower, light oil condenser, heavy oil condenser, oil receiving platform, three-phase separation, oil tank, oil pump, pipeline and pipeline accessories. It functions to separate the pyrolytic gas produced by the main pyrolysis furnace, generate pyrolytic tar and non-condensable gas, and separate and store pyrolysis liquid at the same time.

Flue gas treatment module
It is comprised of cooling tower, activated carbon adsorption, alkali neutralization and dust removal processes, fan and chimney. It is used to purify the flue gas discharged from the pyrolysis furnace and discharge it after reaching the standard.

Non-condensable gas purification heat utilization module
After pyrolysis, the non-condensable gas separated by the oil receiving system is introduced into the pressure stabilizing tank through the purification and pressure control device, and then stably transmitted to the heating device through the water-sealed tank. The non-condensable gas can be used for heating in the furnace, or it can be directly burned in the boiler system to generate steam as products for heating applications.
