Technical Features

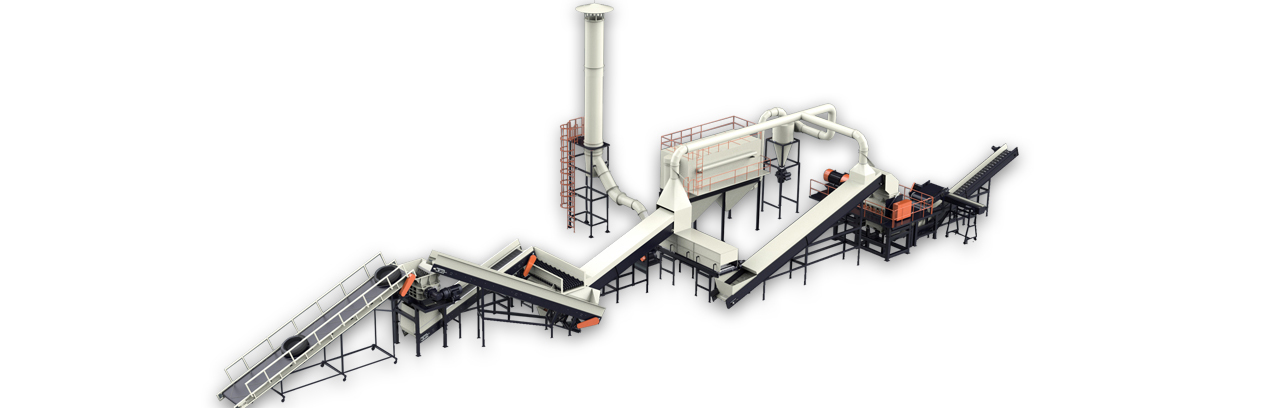

The whole line is of modular design, and the automation of production and maximization of output are realized through the automatic control system.
Ring Cutting + Thread Rolling Module
The bead cutter cuts out the inner bead of the tire so as to prolong the service life of the subsequent crushing equipment and improve the production efficiency; the thread rolling machine separates the steel wire in the bead to improve the value of the product.
Waste tire Crushing Module
The waste tires with the stop ring removed are transported to the double shaft shredder through the conveyor. The two groups of cutters rotated by the double shaft shredder cut them into rubber strips, and the rubber strips are transported by the conveyor to the disc screen for sorting. The rubber blocks larger than the gap are returned to the double shaft shredder through the conveyor for crushing again, while the rubber blocks smaller than the gap are transported to the buffer bin through the conveyor. The buffer bin can adjust the buffering capacity to ensure that the next module can be fed evenly.
Steel Wire Separation Module
The rubber blocks in the buffer bin are evenly transported to the steel wire separator through the conveyor and finely crushed into a mixture of rubber particles ≤ 16mm and steel wire. In the process of finely crushing, the steel wires are separated from the rubber according to the working principle of shearing and extrusion. The separated rubber particles ≤ 16mm are transported to the subsequent process through the conveyor, and the steel wire is output through the conveyor.
Note: the particle size can be adjusted as required by customers.
Dust Removal Module
In the crushing process of waste tires, we will use negative pressure to collect the dust at the main places where the dust is generated, so as to ensure that the dust generated in the production process can be effectively treated.
Automatic Control Module
The automatic control system is used to intelligently control and integrate each single machine of the crushing production line, so as to match the production capacity of each production stage, and maximize the installed power, so as to realize the automation of the production process and maximize the output.
